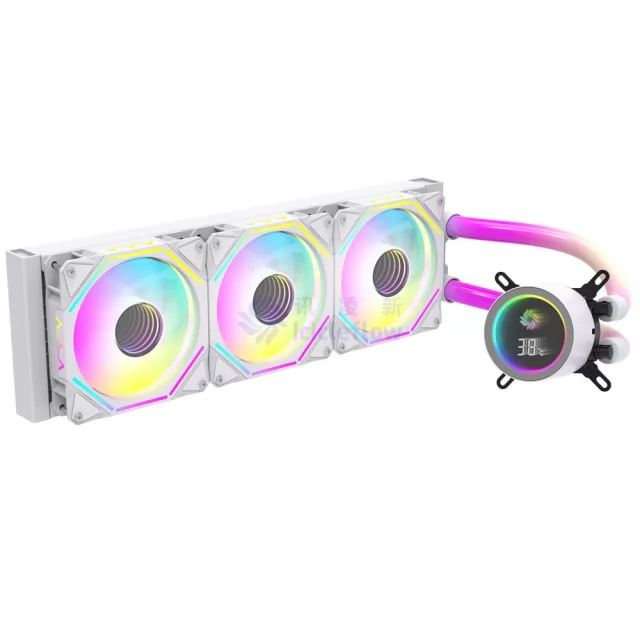

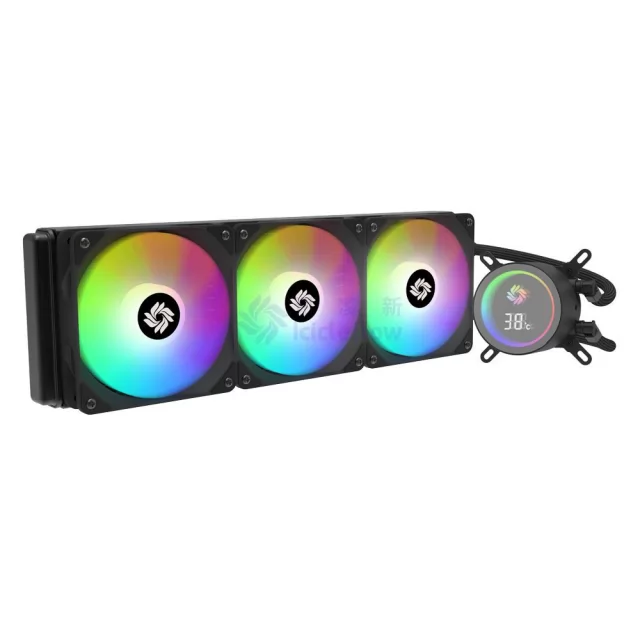

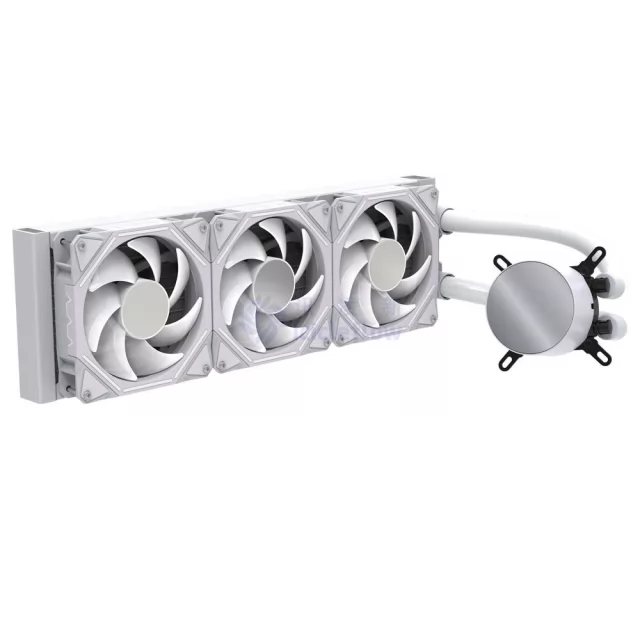

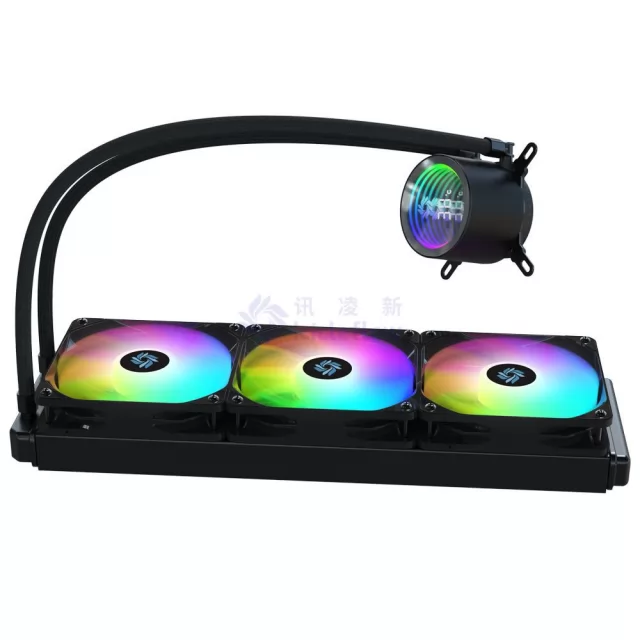

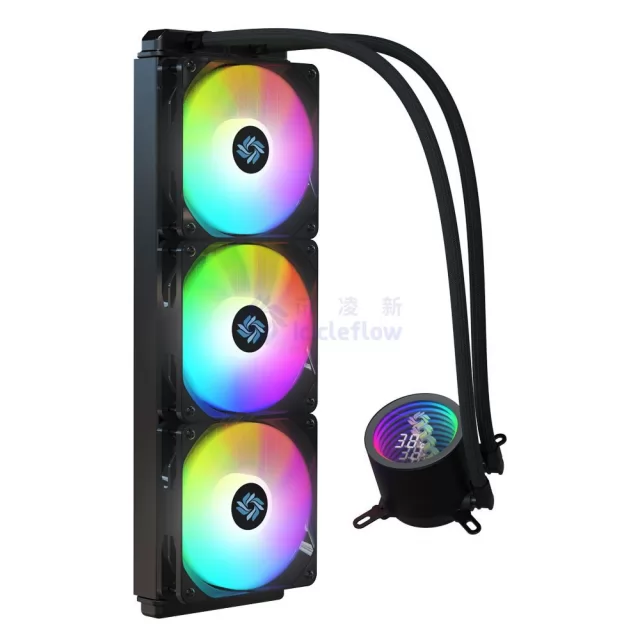

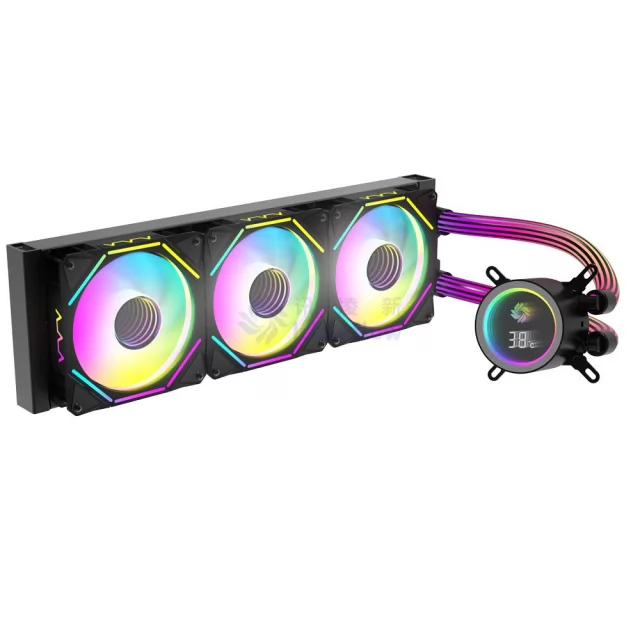

TD-IL-R360 Liquid Cooler

The TD IL R360 Liquid Cooler is a high-performance PC gaming liquid cooling solution engineered for gamers and PC enthusiasts who demand both exceptional thermal control and real-time system insight. This all-in-one cooler combines a 360mm radiator with a distinctive CPU water block that features an integrated display for monitoring core temperatures at a glance. Designed to support the latest Intel and AMD platforms, the TD IL R360 Liquid Cooler delivers the cooling capacity required for high-wattage processors while maintaining a clean, modern aesthetic suitable for any gaming build.

TD IL R360 Liquid Cooler Features

1. With CPU temperature display (Really core temperature)

2. 18 kinds of magic light effect changes (Appearance light effect cool)

3. Three-phase non-inductive motor (quiet, low-torque starting)

4. Ceramic shaft core (strong wear-resistant, cooling pump long running guarantee)

5. PPS water parts (high temperature resistance, less deformation, not easy to produce water leakage)

6. High and low temperature resistant sealing material (ensure no leakage)

7. Low noise (quiet product operation, no noise to disturb consumers)

8. Separate blade patented design (unique design for water cooling industry)

9. Product overall low evaporation rate (product liquid life assurance)

10. High and low temperature rubber pipe (product liquid life guarantee)

11. Patented runner - low flow resistance design (water cooling industry unique design, the first use of rubberless shunt design)

12. High ratio of filling space (high filling rate, product life guarantee)

13. Low thermal resistance heat dissipation performance guarantee (reflecting the overall thermal performance of the product)

14. Intel, AMD universal installation backplane bracket installation (easy for consumers to replace the platform)

15. High thermal conductivity pure copper contact CPU (ensure fast heat transfer speed)

Advantages of TD IL R360 Liquid Cooler

• Real-Time Monitoring: The integrated CPU temperature display on the water block provides immediate temperature feedback, allowing users to monitor system status without software overlays.

• Long-Term Reliability: A ceramic shaft core and PPS (Polyphenylene Sulfide) water parts offer strong wear resistance, high-temperature tolerance, and reduced deformation risk, minimizing the potential for leakage.

• Quiet Operation: The three-phase non-inductive motor and optimized fan curve keep noise levels low—pump noise ≤30 dB and fan noise <36.1 dBA—ensuring a distraction-free environment.

• Enhanced Thermal Efficiency: A high-conductivity pure copper base and patented low-flow-resistance runner design work together to deliver effective heat dissipation, tested to handle thermal loads above 280W.

• Durable Construction: High and low-temperature resistant rubber hoses, combined with a low evaporation rate design, help preserve coolant life and protect internal components.

TD IL R360 Liquid Cooler Application

• High-Performance PC Gaming: Ideal for gaming rigs running AAA titles at high frame rates, where sustained CPU loads demand consistent thermal management to prevent throttling.

• Content Creation & Streaming: Suited for workstations used for video editing, 3D rendering, and live streaming, where prolonged multi-core processing generates significant heat.

• Overclocking Enthusiasts: Provides the thermal headroom needed for pushing CPUs beyond stock speeds, helping maintain stability under increased voltage and clock frequencies.

• Custom PC Builds: Designed for mid-tower and full-tower chassis with 360mm radiator support, making it a versatile choice for personalized gaming setups.

• Broad Platform Compatibility: Fits Intel LGA 115X/1700/2011/2066 and AMD AM2/AM3/AM4/AM5 sockets, suitable for both new system assemblies and hardware upgrades.

Configuration

• One 360mm aluminum radiator (396 x 120 x 27mm) with three pre-installed 120mm hydraulic-bearing fans

• A CPU water block with integrated temperature display and ARGB lighting

• A three-phase brushless sensorless pump with ceramic bearings, rated at 2800 ±10% RPM

• A universal mounting backplate and screws for both Intel and AMD sockets

• Thermal grease (0.5g), fan adapter cable, and detailed installation instructions
  This comprehensive kit streamlines the installation process, allowing builders to focus on system assembly without sourcing additional components.

Customization Services of TD IL R360 Liquid Cooler

• Appearance Design: Tailored visual elements such as pump top cover finishes, sleeve colors, and ARGB lighting patterns to align with brand identity or product line themes.

• Structural Modifications: Adjustments to mounting brackets, hose length, or radiator dimensions to accommodate unique chassis layouts.

• Packaging Design: Custom retail or bulk packaging solutions for streamlined distribution.

• OEM Mass Production: Full-scale manufacturing support backed by rigorous sample verification, aging tests, and quality control processes.
  These services make the TD IL R360 Liquid Cooler a versatile platform for system integrators, boutique PC builders, and brands seeking a differentiated cooling solution.

TD IL R360 Liquid Cooler Functions

• Integrated CPU Temperature Display: The water block features a real-time temperature readout, providing direct visibility into processor thermal status during operation.

• 18 ARGB Lighting Effects: The pump unit supports 18 programmable lighting modes, allowing for personalized visual customization to complement any build theme.

• Low-Noise Cooling Loop: The three-phase non-inductive motor and hydraulic-bearing fans deliver efficient heat exchange with minimal acoustic footprint.

• High-Stability Sealing: High and low-temperature resistant sealing materials and a patented separate blade design contribute to leak-resistant, long-lasting operation.

• Universal Compatibility: The included mounting backplane supports both Intel and AMD platforms, simplifying installation and future upgrades.

• Patented Flow Design: A unique low-flow-resistance runner and rubberless shunt design optimize coolant circulation for improved thermal transfer.

General Specification

Six, accessories bag
