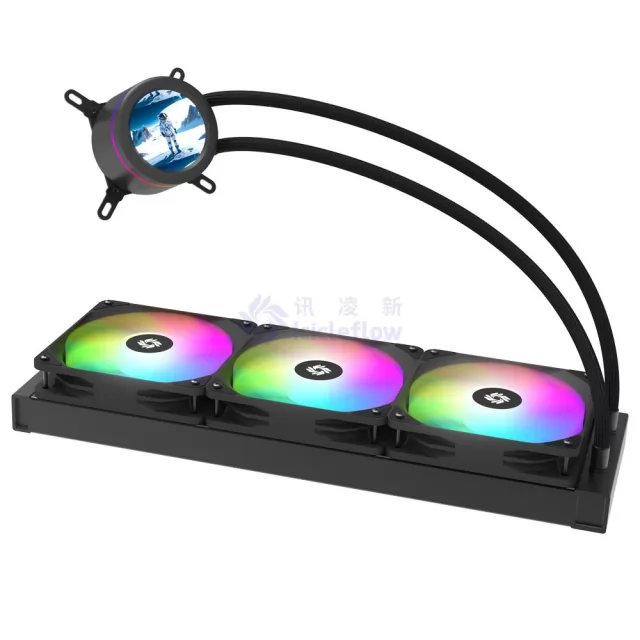

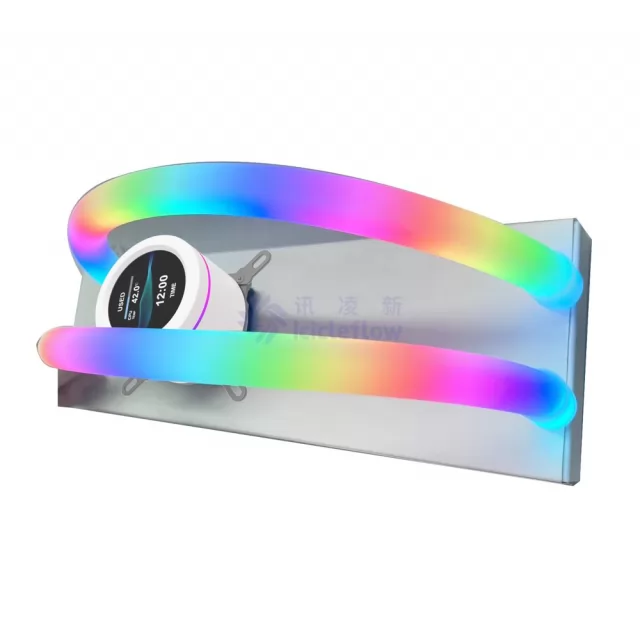

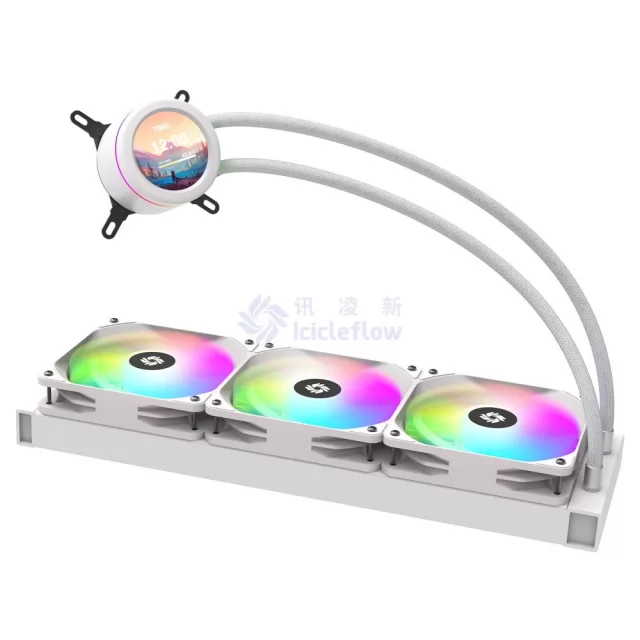

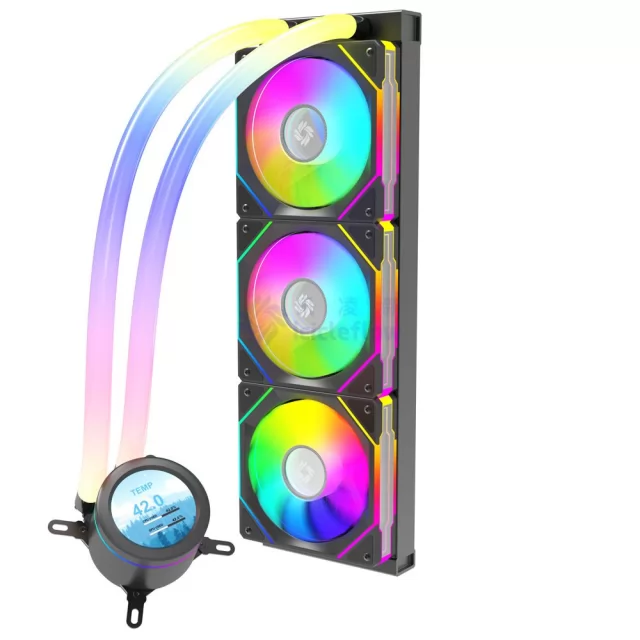

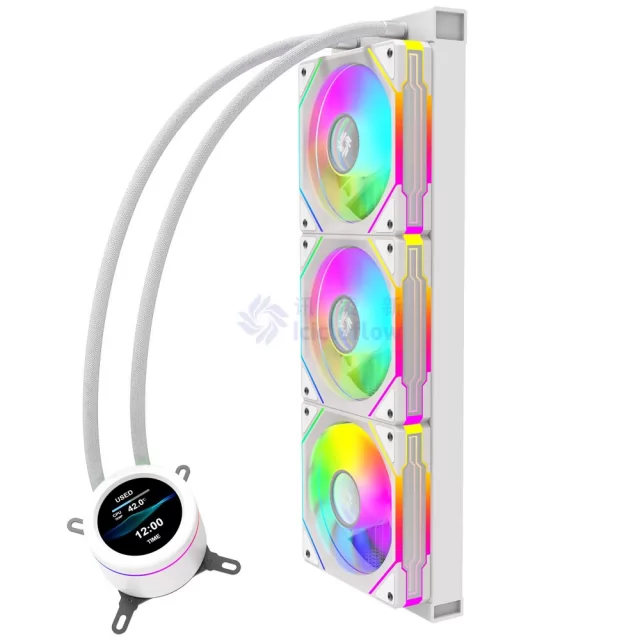

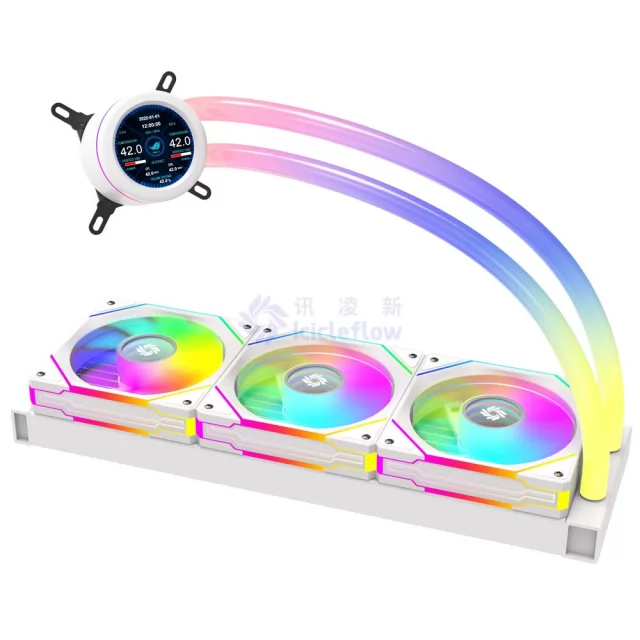

PC Gaming Liquid Cooling
1. With CPU temperature display (Really core temperature)
2. 18 kinds of magic light effect changes (Appearance light effect cool)
3. Three-phase non-inductive motor (quiet, low-torque starting)
4. Ceramic shaft core (strong wear-resistant, cooling pump long running guarantee)
5. PPS water parts (high temperature resistance, less deformation, not easy to produce water leakage)
Product Features
1. With CPU temperature display (Really core temperature)
2. 18 kinds of magic light effect changes (Appearance light effect cool)
3. Three-phase non-inductive motor (quiet, low-torque starting)
4. Ceramic shaft core (strong wear-resistant, cooling pump long running guarantee)
5. PPS water parts (high temperature resistance, less deformation, not easy to produce water leakage)
6. High and low temperature resistant sealing material (ensure no leakage)
7. Low noise (quiet product operation, no noise to disturb consumers)
8. Separate blade patented design (unique design for water cooling industry)
9. Product overall low evaporation rate (product liquid life assurance)
10. High and low temperature rubber pipe (product liquid life guarantee)
11. Patented runner - low flow resistance design (water cooling industry unique design, the first use of rubberless shunt design)
12. High ratio of filling space (high filling rate, product life guarantee)
13. Low thermal resistance heat dissipation performance guarantee (reflecting the overall thermal performance of the product)
14. Intel, AMD universal installation backplane bracket installation (easy for consumers to replace the platform)
15. High thermal conductivity pure copper contact CPU (ensure fast heat transfer speed)
General Specification
| No. | Items | Specifications/Conditions |
| 1 | Product model number | Icicleflow 360 liquid cooler |
| 2 | Coldplate head size | W70 * L70* H54mm |
| 3 | Coldplate head size | W22.4 X L15.8X H8.5mm |
| 4 | 120 radiator | W396 X 120 X27mm |
| 5 | Hose Specifications | Black rubber pipe *2, coat black braided mesh,L350mm |
| 6 | Hose cover | Aluminum alloy, oxidized black sleeve, ∅12.4*∅13.2*12.3mm |
| 7 | Top cover specifications | 70 x 70 x 41.1mm, made of PC, sprayed black paint onthe surface |
| 8 | Skive base spec | L62*W53*H3.8mm, material copper |
| 9 | Impeller poles | 10 Poles / 10 Poles |
| 10 | Stator slots | 12 slots / 12 slots |
| 11 | Pump rated voltage | DC 12V |
| 12 | Pump starting voltage | >DC 6V |
| 13 | Pump current rating | 0.26 A plus or minus 10% |
| 14 | Pump rating | 3.1W ±10% |
| 15 | Rated pump speed | 2800±10%RPM |
| 16 | Motor type | Three phase brushless sensorless motor |
| 17 | T-rising orTDP | Tests above 280W are for reference only (i9-12900K test bed) and the room temperature is 26° |
| 18 | Bearings | Ceramic |
| 19 | Shaft core | Ceramic |
| 20 | Product life | 30,000 hours, 250 C |
| 21 | Noise | ≤30 dB |
| 22 | Coolant freezing point | -8 °C |
| 23 | Pump power cable | 2510-3P black female,UL2468 26#AWG 3 Parallel, black exposed 300±15mm |
| 24 | LED Screen Power cable | 1061#26AWG quadriplex, quinary, with DuPont2.54_9pin black female end, exposed 400±15mm |
| 25 | ARGB power cable | UL1061#26AWG triple black parallel cable, 300±15/100±15mm leakage, ARBG female end -3P |
| 26 | Control light switch cable | 2.54-2P Dupont male à button, exposedcable length 330mm±10 |
| 27 | ARGB rated voltage | DC12V |
| 28 | ARGB rated current | 0.16 A |
| 29 | ARGB power rating | 1.92 W. |
| 30 | Operating temperature | - 20 ~ 45 ℃ |
| 31 | Storage temperature | - 30 ~ 60 ℃ |
| Fan specifications | |
| Dimensions | 120 x 120 x 25mm |
| Quantity to use | 3 |
| Rated voltage | 12V |
| Rated current | 0.03 0.29 A |
| Noise | < 36.1 dBA |
| ARGB Rated voltage | DC5V |
| ARGB Rated current | 0.37 A |
| ARGB power rating | 1.85 w. |
| Bearings | Hydraulic pressure |
| RPM | 800~1800 RPM±10% |
| Material | PBT fan frame, PC fan blade |
| Connecting wire | 2510-4PIN female end, UL1061 #26AWG black parallel wire, wire length 300±10mm |
| ARGB connect wire | 5V/3PIN RGB female end, UL1061#26AWG black parallel wire, 300± 10mm wire length |
| Part name | Specifications and parameters | Quantity QTY |
| INTEL plastic backboard | INTEL triple-purpose plastic back plate | 1 |
| INTEL stand | Manganese steel 1.5mm thick, electrophoretic black | 2 |
| AMD holder | Manganese steel 1.5mm thick, electrophoretic black | 2 |
| Fan Screw | Fanscrew 6-32X29.0mm | 12 |
| Radiator screw | Water screw 6-32X6mm | 12 |
| Bracket screws | M3X6mm, cross countersunk, electroplated black nickel | 4 |
| INTEL 115X 1700 1366 screw | Easy iron, nickel-plated surface, cross round head | 4 |
| INTEL 2011 screw | Easy iron, nickel-plated surface, cross round head | 4 |
| AMD screw | Easy iron, nickel-plated surface, cross round head | 4 |
| Spring | Wire diameter 1.0mm, piano wire | 4 |
| Thermal grease | 0.5g gram | 1 |
| Fan adapter cables | One belt three fan connector | 1 |
| Instructions | Instructions | 1 |
| Applicable CPU socket | |
| Intel Platform: | 115X/1700/2011/2066 |
| AMD platforms: | AM2/AM3/AM4/AM5 |
| Instructions Packing | |
| Net weight of product | 0.96 KG (Estimated) |
| Gross weight of product | 1.80 KG (Estimated) |
| Packing method | color box + outer box |
| Outer box size (6 packs) | 430*400*420MM (Estimated) |
| Shelf life | |
| Shelf life (1 year) | 1 year |
Six, accessories bag
