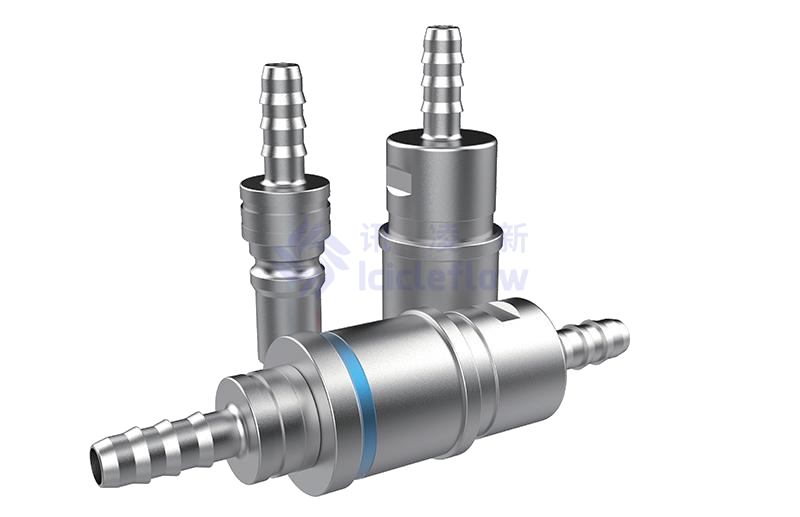

Icicleflow 4.8mm Double Tower Quick Coupling with fluid medium water glycol
Model: DTQC-4.8mm
Fluid medium: water glycol, coolant, water
Connection mode: G1/8 thread
Material: Aluminum with hard anodizing
Seal ring material: EPDM
Max working pressure: 1.2MPa
Min and max temperature: -40℃-150℃
Max. disassembly pressure: 0.3MPa Equivalent diameter: 4.8mm
Insertion force: F≤60N
Main Performance
| 1 | Body material | Aluminum with hard anodizing |
| 2 | Sealing material | EPDM |
| 3 | Operating temperature | -40℃ to 120℃ |
| 4 | Tolerant fluid | Glycol coolant, propylene glycol coolant, deionized water, etc |
| 5 | Nominal diameter DN | 4.8mm |
| 6 | Working pressure | 0 to 1.2 MPa |
Product Brief Introduction
Adopt stainless steel round bars self-locking structure to realize fast locking and separation
Valve structure adopts bidirectional plane structure sealed design, no leakage at both connect and disconnect state, safe and reliable
With red and blue color identification, it can easily identify the incoming and outgoing liquid which could prevent misoperation
Please contact us for customization
Appliacation
It is mainly used between data center servers and manifolds, and betwwen water manifolds and system pipes to achieve leak-free quick connection and disconnection. Improve efficiency, realize module hot-swappable, reduce unnecessary workload caused by liquid discharge and injection. It is mainly used in AI serves, data centers, supercomputers and other fields.

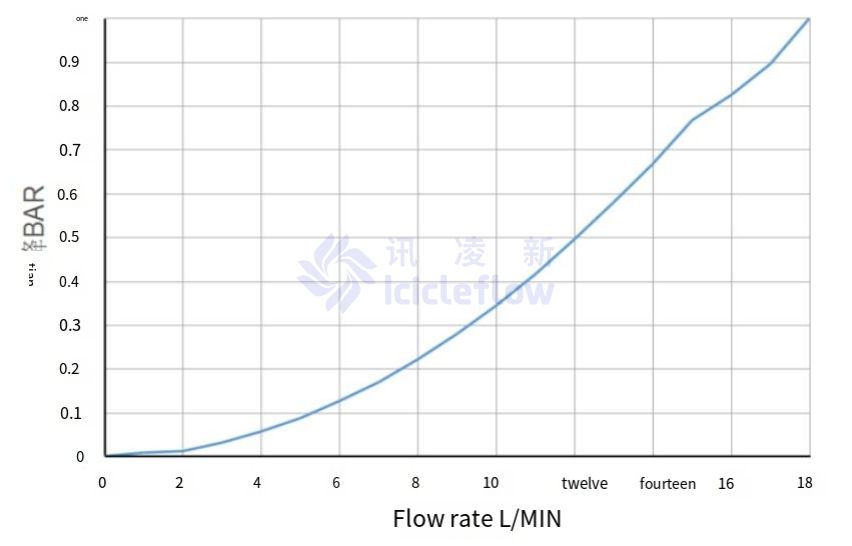

Flow Rate / Pressure Drop Hydraulic Charts
