Liquid Cooling Accessories

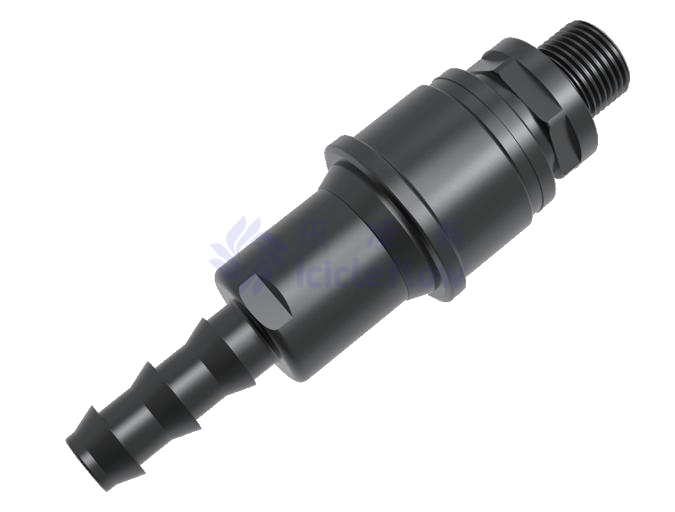

Icicleflow 3mm Quick Coupling
Model: QC-3mm
Fluid medium: water glycol, coolant, water
Connection mode: G1 thread
Material: SUS316L
Seal ring material: EPDM
Max working pressure: 1MPa
Min and max temperature: -20℃-150℃
Max. disassembly pressure: 0.2MPa
Equivalent diameter: 3mm
Insertion force: F≤38N
Main Performance
| 1 | Body Material | 316L |
| 2 | Sealing material | EPDM |
| 3 | Operating temperature range | -40℃ to 120℃ |
| 4 | Tolerant fluid | Glycol coolant, propylene glycol coolant, deionized water, etc |
| 5 | Nominal diameter DN | 3.0mm |
| 6 | Working pressure | 0 to 1.5MPa |
| 7 | Mechanical life | 5000 insertion and removal cycles |
Product Brief Introduction
Adopt stainless steel round bars self-locking structure to realize fast locking and separation
Valve structure adopts bidirectional plane structure sealed design, no leakage at both connect and disconnect state, safe and reliable

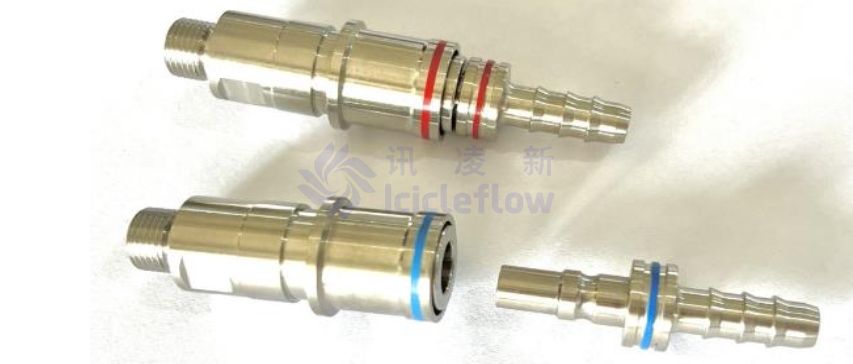

With red and blue color identification, it can easily identify the incoming and outgoing liquid which could prevent misoperation
Please contact us for customization
Appliacation
It is mainly used between data center servers and manifolds, and betwwen water manifolds and system pipes to achieve leak-free quick connection and disconnection. Improve efficiency, realize module hot-swappable, reduce unnecessary workload caused by liquid discharge and injection. It is mainly used in AI serves, data centers, supercomputers and other fields.
Description for quick connector
Dimensions of mounting holes
Dimensions of Mounting Holes

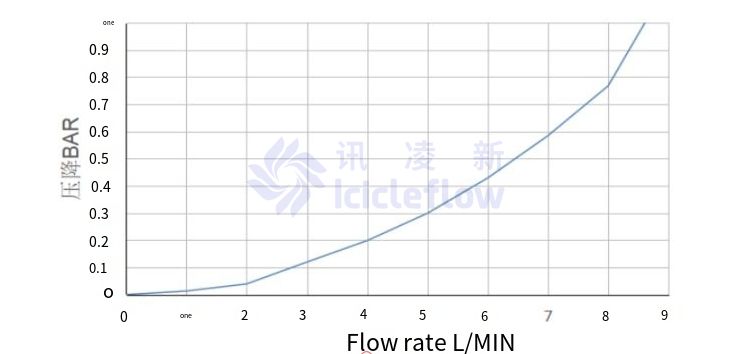

Flow Rate / Pressure Drop Hydraulic Charts
