Liquid Cooling Accessories

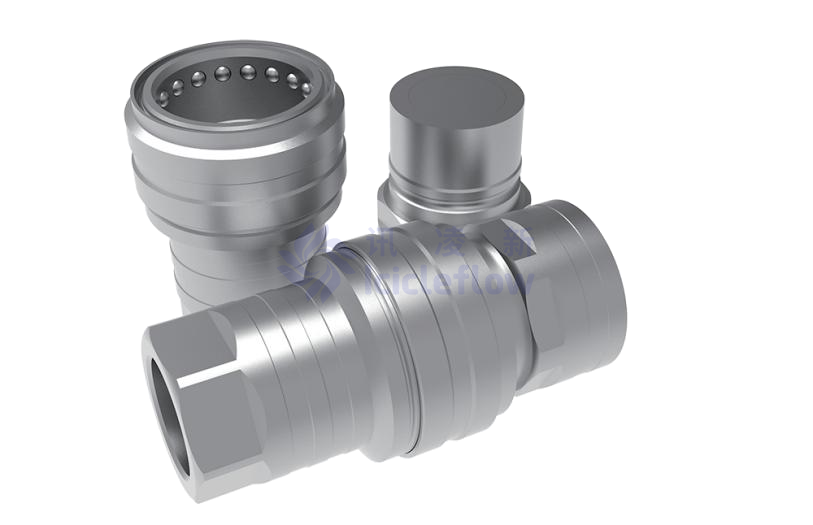

Icicleflow 20mm Quick Coupling
Material: Copper plated with nickel and stainless steel
Model Name: QC-20mm
Fluid medium: water glycol, coolant, water
Connection mode: G1 thread
Material: Copper plated with nickel and stainless steel
Seal ring material: EPDM
Max working pressure: 10MPa
Min and max temperature: -20℃-150℃
Max. disassembly pressure: 3MPa
Equivalent diameter: 20mm
Insertion force: F≤300N
| Name | 20mm Quick Coupling |
| Diameter (mm) | 20 |
| Maximum allowable pressure PS (bar) | 10 |
| Minimum and maximum allowable temperatures TS(℃） | -20 to +150 |
| Stop valve | Two-way |
Material
It is mainly made of nickel-plated copper and stainless steel
Sealing performance
Sealing ring material: Ethylene propylene Diene monomer (EPDM) rubber
Important! Do not use mineral-based fluids (such as oil and grease), and avoid EPDM
Rubber sealing rings (EPDM) come into contact with these fluids

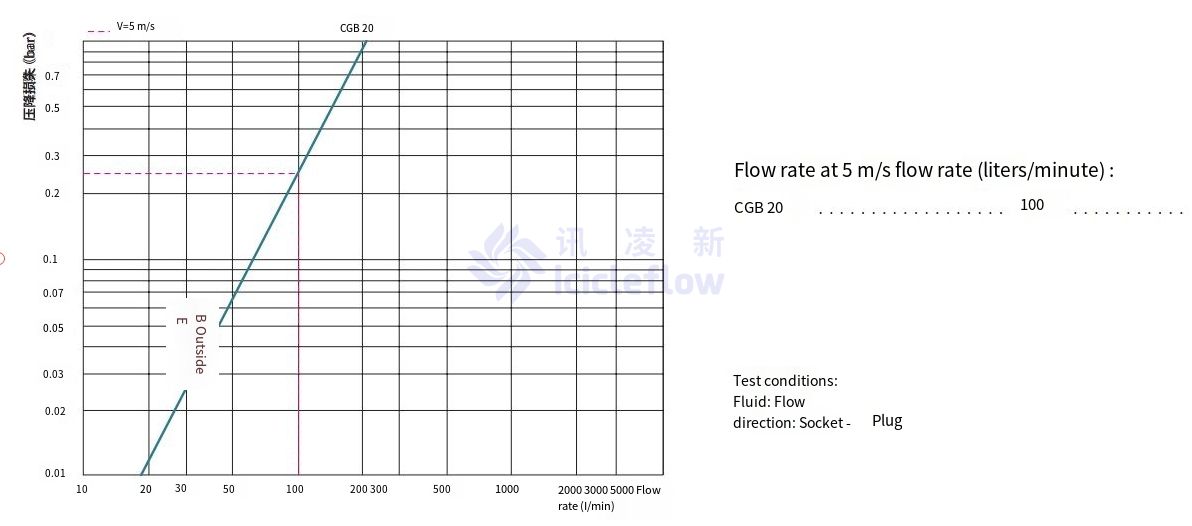

Hydraulic flow rate/pressure drop
，
