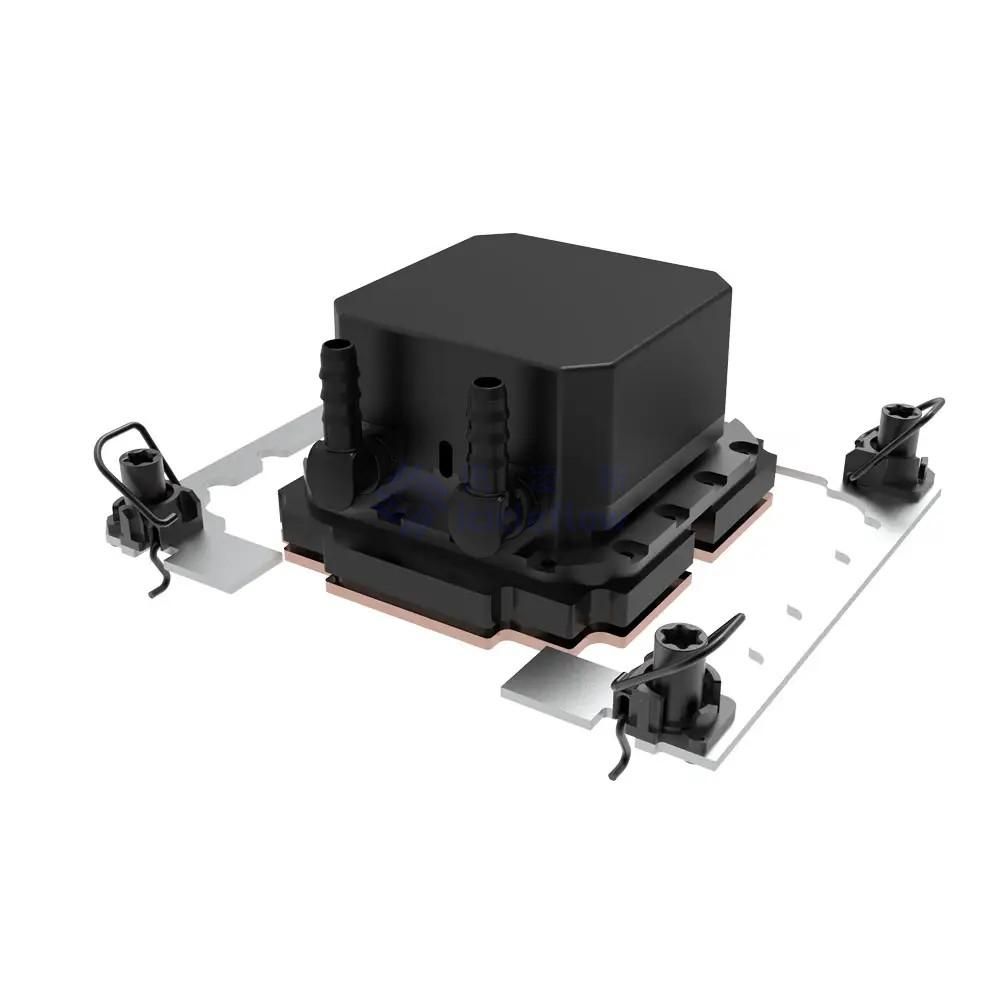

3U Server Liquid Cooler
This Server Level Sealed Loop cooler includes the pump and cold plate with an integrated liquid-to- air heat exchanger to cool one CPU. The server cooler is delivered as a complete, prefilled assembly. No need for OEMs or Data Centers to handle the server coolant.
Product Parameter：
Model：SP-3U-3F
TDP: 350W
Pump Size：62*62*41 MM
Fan Speed：3500±10% RPM
Fan Noise：＜45 dBA
Fan Size ：120*120*30 MM
Radiator Size：396*120*27 MM
Pump Bearing: Ceramic Bearing
CPU socket：Intel LGA1200/2011/115X/1700/1366, AMD AM3/AM4/AM5/TR4
Basic Specifications
Specification | Value |
Storage Temperatures | -16°C to 70°C |
Operating Liquid Temperature | 2° to 60°C |
Operating Air Temperature | 25°C cold aisle intake |
Cold Plate | |
Material | Copper |
Thermal Resistance | RCP,case = 0.1 K/W |
MTTF | > 50000 Hours(operation temperature: 250C) |
