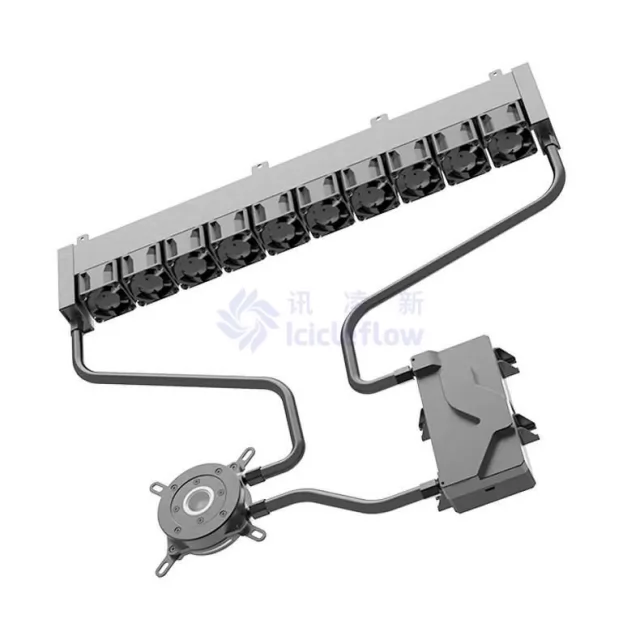

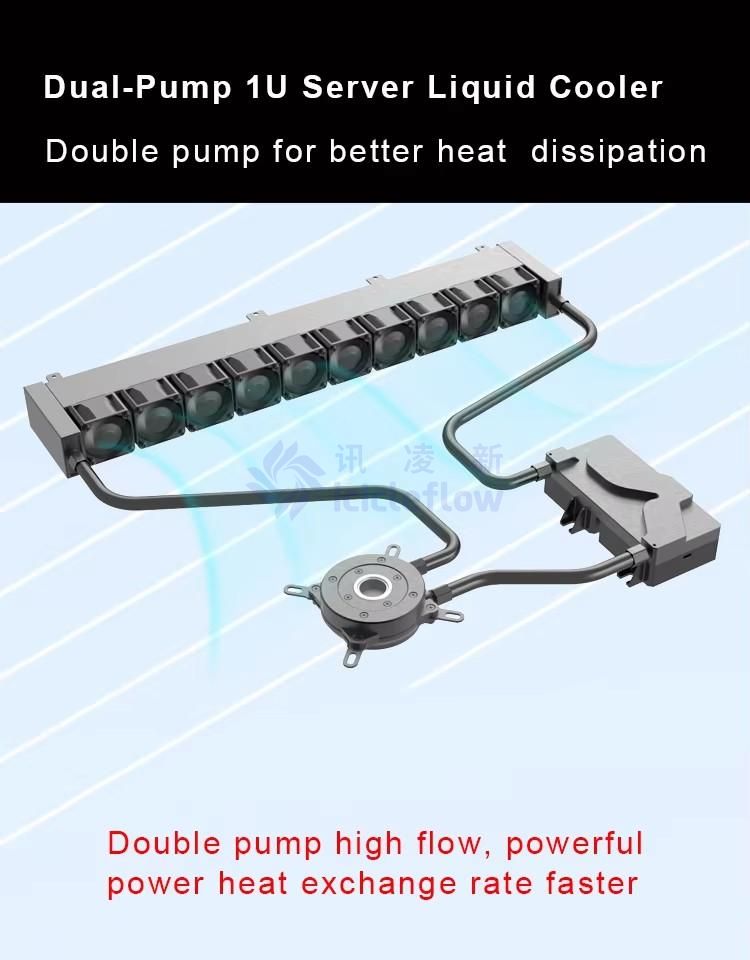

External Double Pump 1U Server Liquid Cooler

External Double Pump 1U Server Liquid Cooler

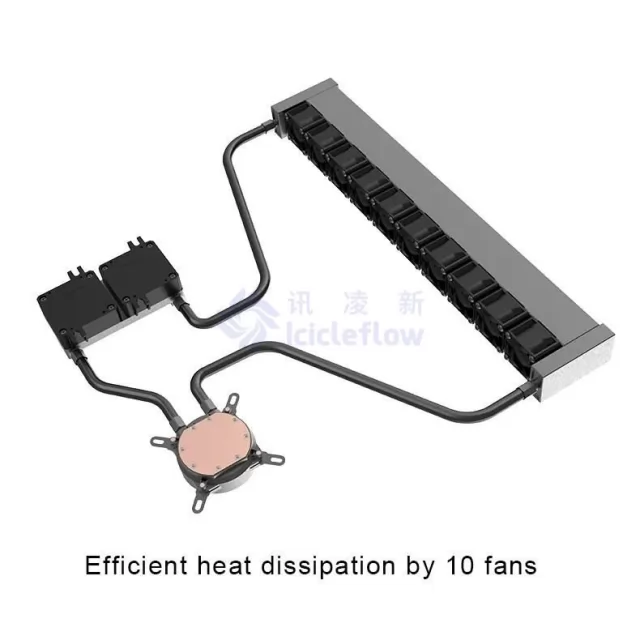

Thisi Icicleflow EX-DP-1U-10F passive dual-pump 1u server liquid cooler is designed for standard 1u cabinet, with visible window is convenient for maintenance to fill coolant in after 1 year running. The aluminum and space shuttle-grade glass cooling block is durable and high grade for your choice.

Product Specification

Model: EX-DP-1U-10F

TDP: 350W

Pump Size: 65*65*27 MM

Pump Bearing: Ceramic Bearing

Fan Size: 40*40*38MM/80*80*38MM (4038 for 1U/ 8038 for 2U)

Fan Speed: 15000±10% RPM (Can be customized according to your requirements)

Fan Noise:＜65 dBA

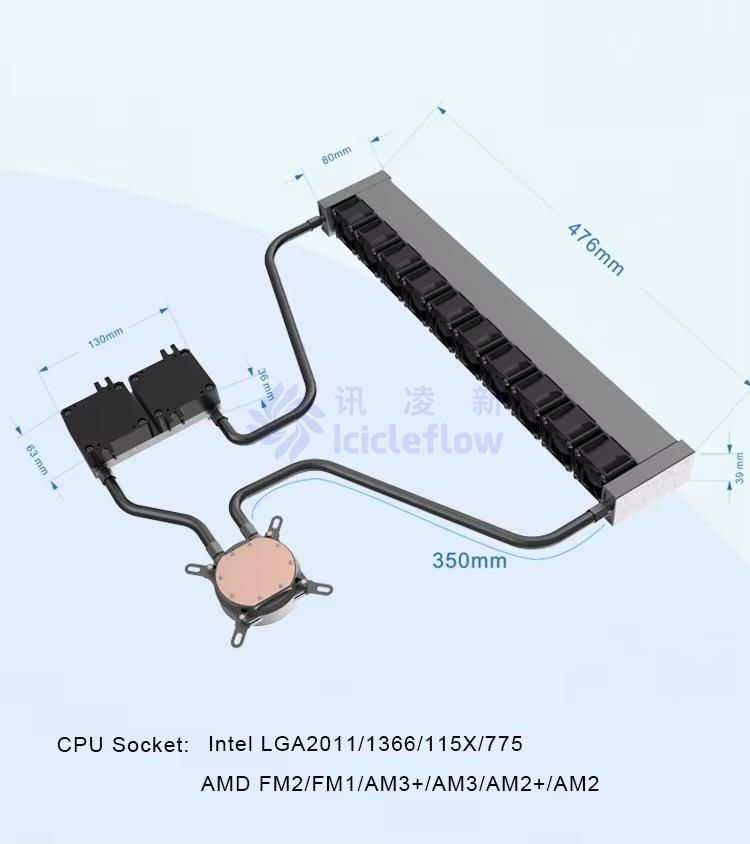

Radiator Size: 457*80*40 MM (Can be customized based on your server cabinet dimension)

CPU socket: Intel LGA1200/2011/115X/1700/1366,

AMD AM3/AM4/AM5/TR4

Next Product Inquire Now Request for Quote

Characteristic

Description

Parameter

Application scope

Applied for 2U Server Cabinet, 2U Server Rack, 2U CDU, Data Center and other Server environments.

Product features

The cooling block adopts aluminum and space shuttle-grade glass is durable and high quality.

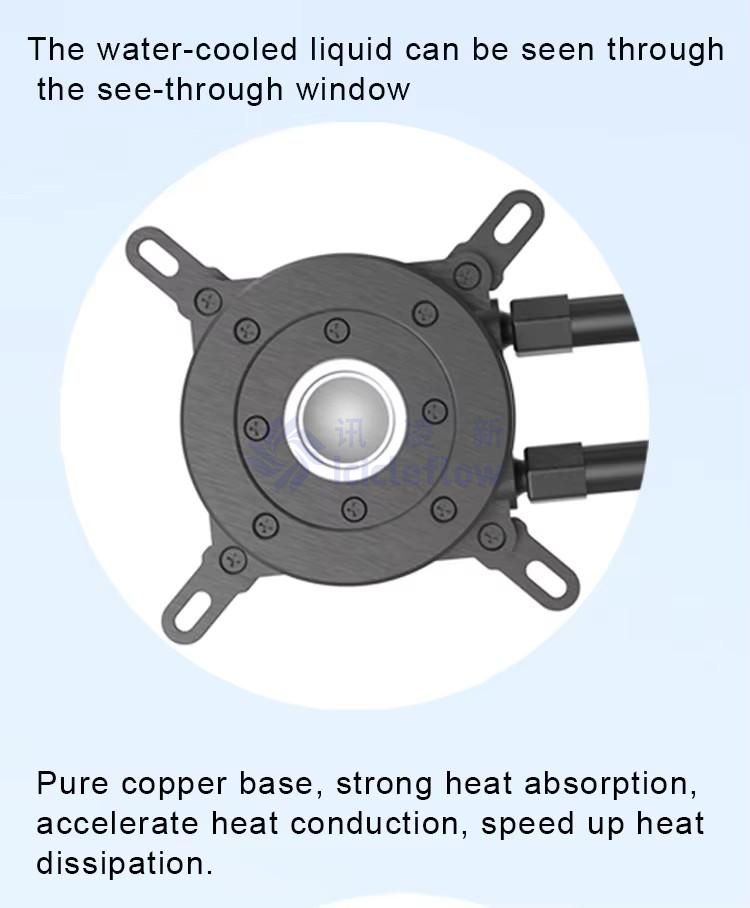

Visible window easy for maintenance to fill coolant guarantee long lifetime.

Passive pump can customize high power watt.

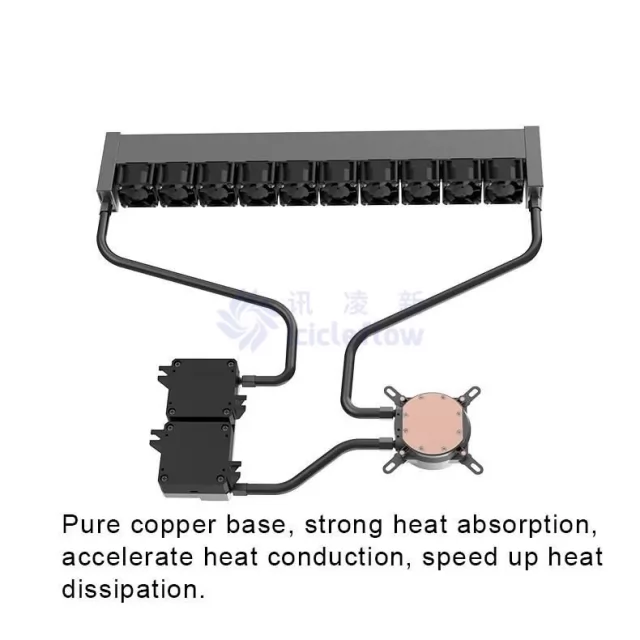

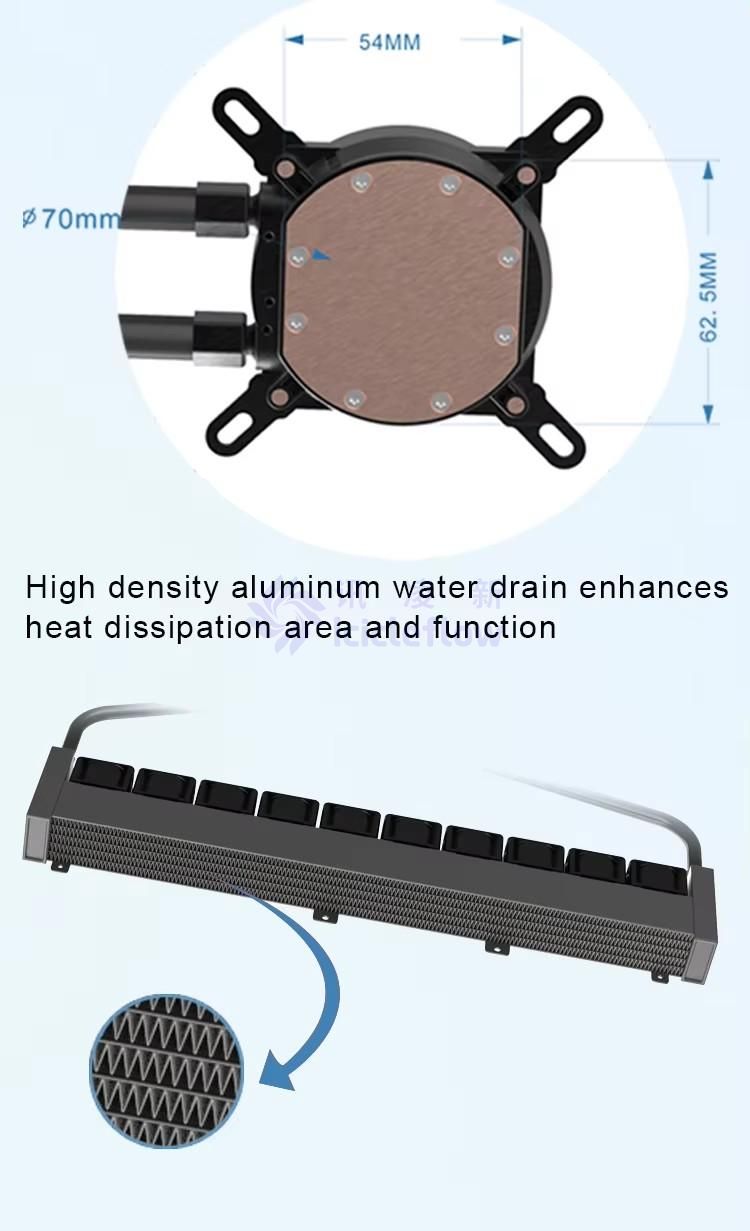

Independent research and development thermal contact copper skiving base for efficient heat conduction.

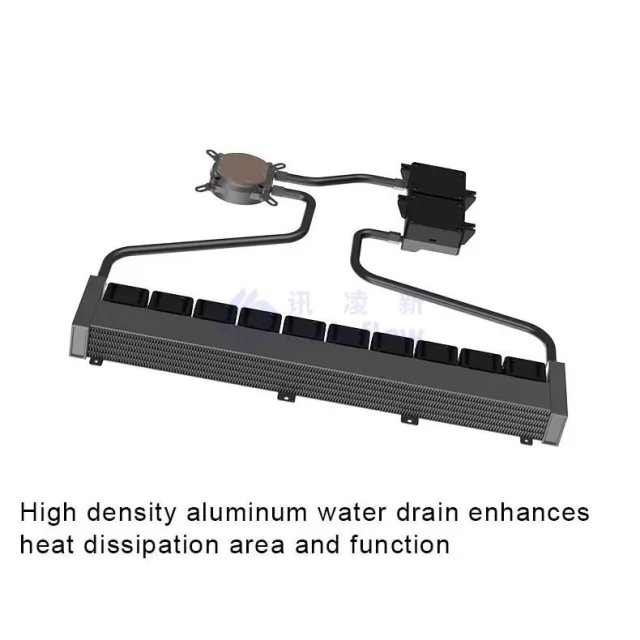

Copper skive with high density fins, better for heat conduction and heat dissipation.

High reliability CB rubber tubing with inner braided layer.

Multi installation methods design for your choice, meet single socket or multi sockets application.

Pump with low noises design.

Low rate of evaporation design.

High heat resistance material choice (PPS+40% GF housing).

Switching

Description

External Double Pump 1U Server Liquid Cooler

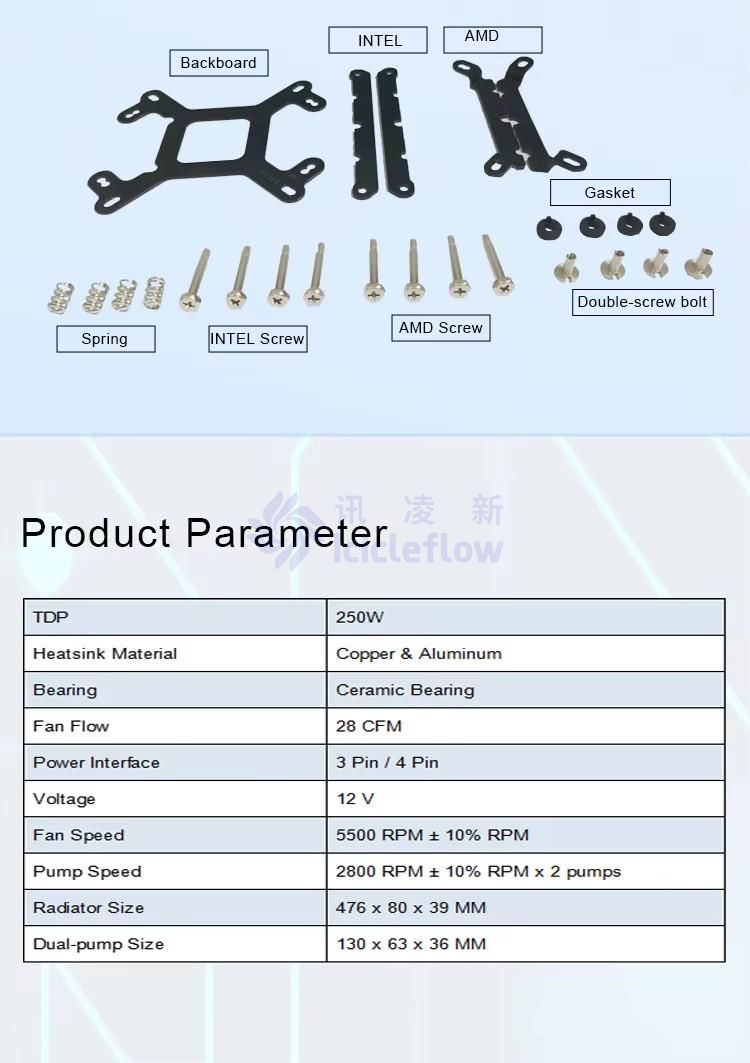

Optional accessory list

External Double Pump 1U Server Liquid Cooler
