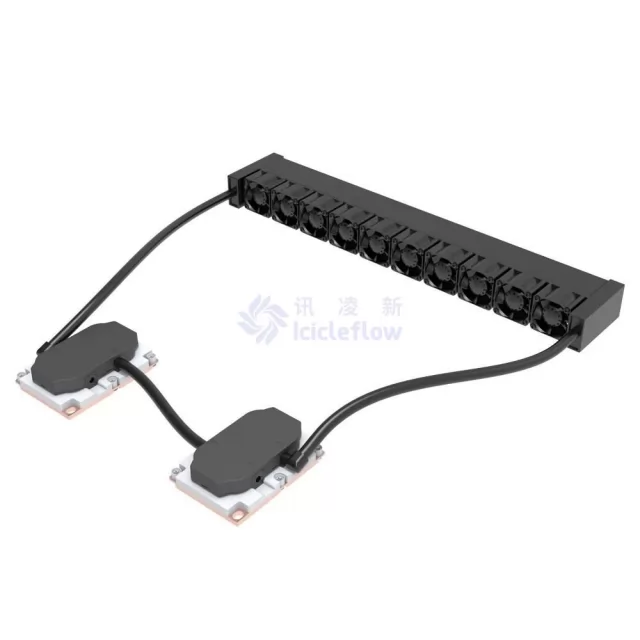

Intel Double Pump 1U Dual CPU Server Liquid Cooler

Intel Double Pump 1U Dual CPU Server Liquid Cooler

The Icicleflow All-in-one Liquid Cooling Intel-DP-1U-10F-2C provides maximum performance and high efficiency for closed 44mm height unit server systems. The 10 PWM fans with the dimensions 40 x 40 x 28 mm rotate at a maximum speed of 15000rpm. The water cooling supports CPUs with a TDP of up to 400 watts. It is compatible with LGA4677/LGA4189/LGA3647 sockets.

Specification

Product Parameter：

Model: Intel-DP-1U-10F-2C

TDP: 400W

Pump Size: 117*78*27 MM

Fan Speed: 15000±10% RPM

Fan Noise:＜65 dBA

Fan Size: 40*40*38 MM

Radiator Size: 457*80*40 MM

Pump Bearing: Ceramic Bearing

Voltage: 12V

CPU socket: LGA4677/LGA4189/LGA3647

Next Product Inquire Now Request for Quote

Application scope

Characteristic

Parameter

Application scope

Applies for 44mm height server cabinet with 2 x LGA CPU.

Product features

Independent research and development thermal contact copper skiving base for efficient heat conduction.

Copper skive with high density fins, better for heat conduction and heat dissipation.

High reliability CB rubber tubing with inner braided layer.

Pump with low noises design.

Multi installation methods design for your choice, meet single socket or multi sockets application.

Low rate of evaporation design.

High heat resistance material choice (PPS+40%GF housing).

No-rubber and low flow resistance manifold design.

Switching

Technical indicators

Intel Double Pump 1U Dual CPU Server Liquid Cooler

Cooling pump, Liquid-to-air heat exchanger, Server coolant, Tube
