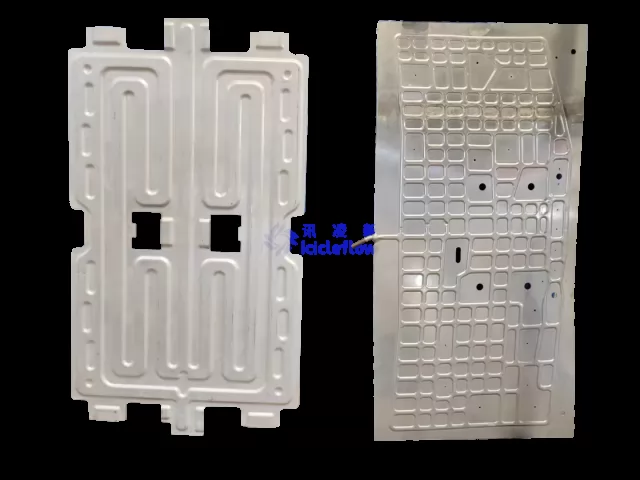

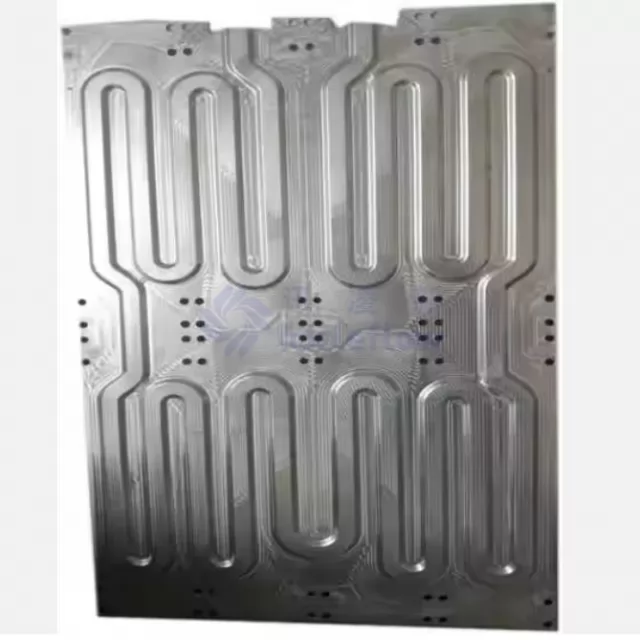

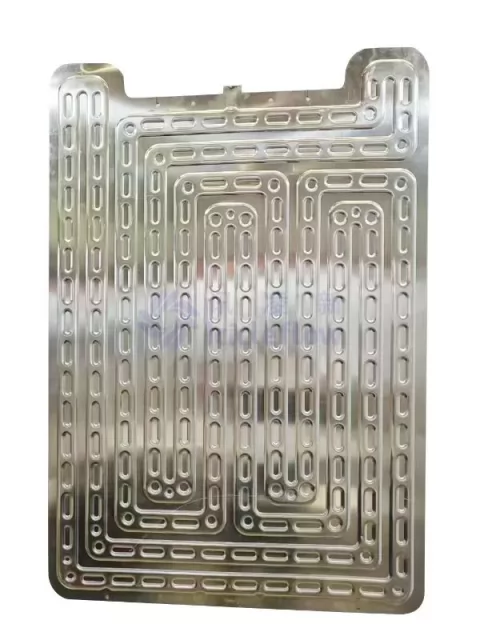

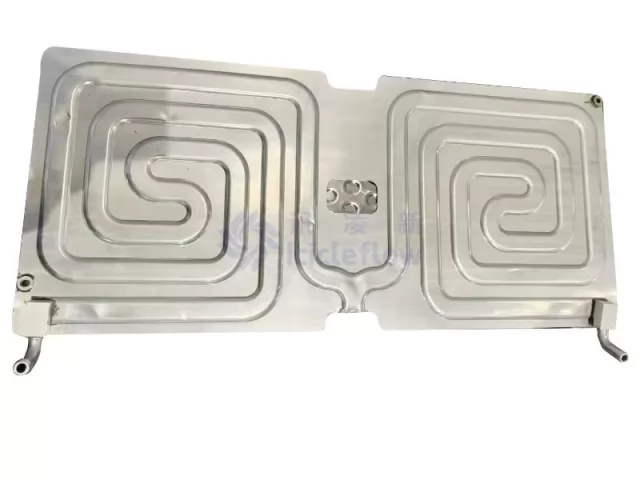

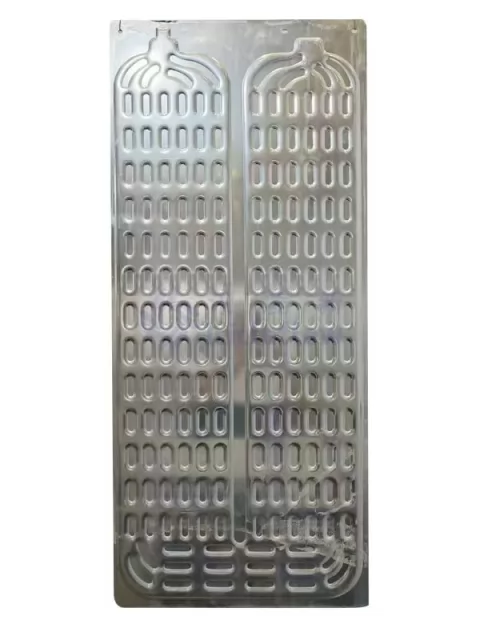

Sheet Metal Stamping Pressed Aluminum Vacuum Brazed Liquid Cold Plate

Sheet Metal Stamping Pressed Aluminum Vacuum Brazed Liquid Cold Plate

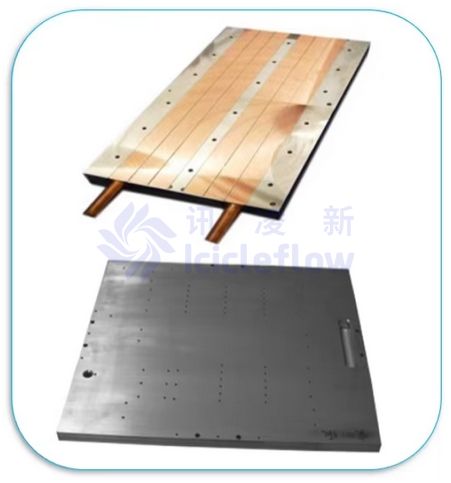

Our cold plates covers a series of tubed cold plates, vacuum brazed aluminum cold plate, CAB brazed aluminum cold plate, heat pipe cold plate, phase change cold plate and other custom cold plates.Metalli’s cold plates covers a series of tubed cold plates, vacuum brazed aluminum cold plate, CAB brazed aluminum cold plate, heat pipe cold plate, phase change cold plate and other custom cold plates.

Product Description

NO.	ITEM	CONTENT DESCRIPTION
1	Material	Aluminum alloy, AA3003 is commonly used
2	Production Technique	Sheet metal stamping and Vacuum brazing
3	Outer Dimension Limit	Max. 380011001100mm LWH
4	Surface Roughness	Standard 12um or custom
5	Surface Flatness	Standard 0.005cm per cm length or custom
6	Working Pressure	Normal 1.2 to 5 bars
7	Surface finish	Mill finish, anodization, painting or custom
8	Packing way	Normal plywood case packing way

Metalli’s cold plates covers a series of tubed cold plates, vacuum brazed aluminum cold plate, CAB brazed aluminum cold plate, heat pipe cold plate, phase change cold plate and other custom cold plates.Metalli’s cold plates covers a series of tubed cold plates, vacuum brazed aluminum cold plate, CAB brazed aluminum cold plate, heat pipe cold plate, phase change cold plate and other custom cold plates.

Main Products

LIQUID COLD PLATE

HEAT EXCHANGER

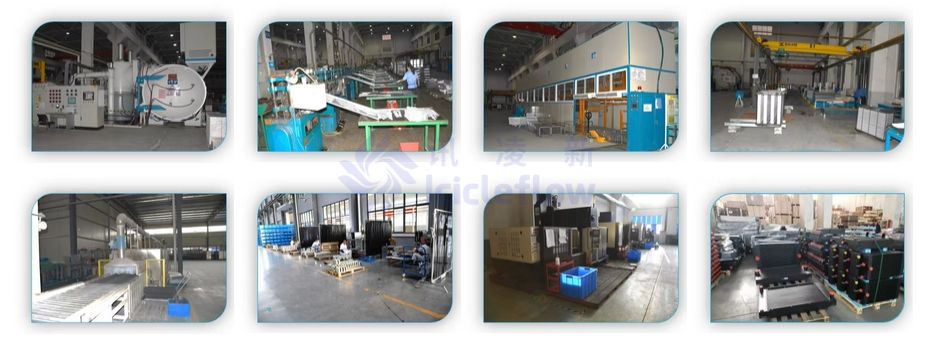

Company Profile

Sheet Metal Stamping Pressed Aluminum Vacuum Brazed Liquid Cold Plate

Main process capabilities includes:
☞ Vacuum brazing
☞ Control atmosphere brazing
☞ Welding
☞ CNC machining
☞ Aluminum extrusion
☞ Aluminum die casting
☞ Sheet metal fabrication
☞ Surface finish
☞ Assembly & packing
☞ Other Custom fabrication services

Quality Assurance

☛ Quality aspects are comprehensively involved from design stage, design of process, tools & fixtures and packing must fit DFM (Design For Manufacturing) concept;

☛Lean six sigma tools are widely used at Metalli to minimize process variations and guarantee consistent quality by implementation of continuous improvement;

☛Our advanced laboratory testing equipment in house provide us sufficient test data and verify quality characters and reliability.

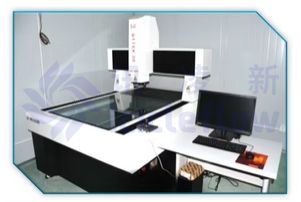

Visual & Dimensions Inspection

3D Imaging Test

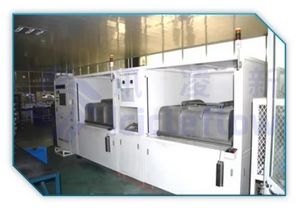

Water Leak Detection Test

Helium Leak Deteciton Test

Wind Tunnel Test

Thermal shock Test

IMMERSION ULTRASONIC C-SCAN IMAGING TEST

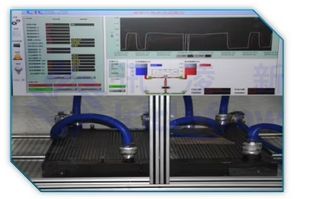

Flow Resistance Test

X-RAY Imaging Test

Design & Engineering

THERMAL SIMULATION CASE STUDY

☛Our designers,engineering engineers work closely with production engineers,quality engineers and source engineers to ensure your solutions meet DFM and are optmized;

☛Simulation softwares are fluently used by Metalli's engineers to analyze and improve your products' structure and design.

Putting the customer first is the starting point and the key to our success

☛We translate their needs into business solutions.

☛We work closely with our customers and listen to customer's voices clearly to ensure their needs are clearly understood and transferred into our actions efficiently.

Our cold plates are widely used in lasers,medical equipment,EV power battery pack,IGBT module,power electronics,motor drive devices,Microwave 5G transmission,renewable energy,traction,semiconductor,etc.

Inquire Now Request for Quote

Application scope

E-mobility
