Brazing Water Cooling Plate

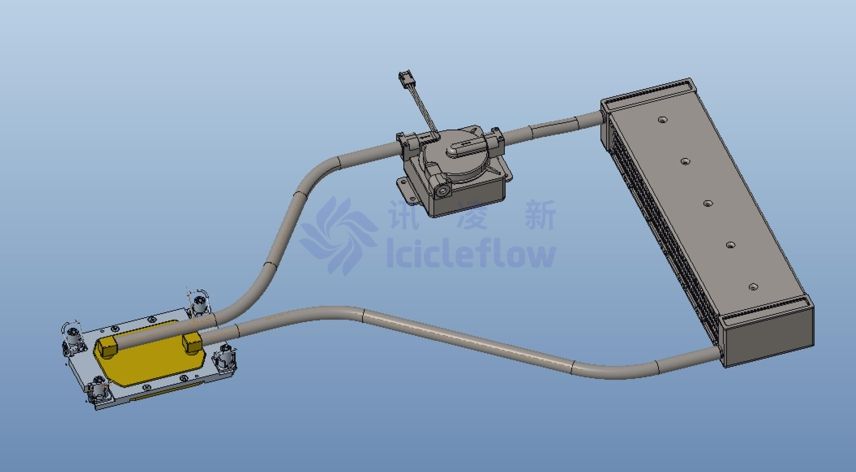

LGA-4677 Brazing Water Cooling Plate
Heatsink Material: Copper
Bracket Material: AL6061
Pump Size: 118*78*23.3mm Connector
(Support Customization): Suitable for 6mm inner pipe
CPU Socket: LGA4677
Product Feasture:
Skive copper base for easy heat conduction
Brazing process
Copper skive with high density pin
Outer braided rubber hose
High flow water pump
Low noise design
Customized special fasteners
Low rate of evaporation design
High heat resistance choice(PPS+40%GF housing)
Independent pump design
| 序号 | Item | Sspcification |
| 1 | Product descriprion | 1U 4677 Brazing cooling plate |
| 2 | Cooling plate size | L118*W78*H23.6mm |
| 3 | Socket | LGA4677 |
| 4 | Pump rated valtage | DC12 V |
| 5 | Starting voltage of pump | ＞6V |
| 6 | Shaft core | Ceramic |
| 7 | Bearing | Ceramic |
| 8 | Rated current of pump | 0.6A+/-10% |
| 9 | Rated speed of pump | 3100+/-10% RPM |
| 10 | Rated power of pump | 7.2W |
| 11 | Working temperature range | -10℃ to 40℃ |
| 12 | Storage temperature range | -20℃ to 60℃ |
