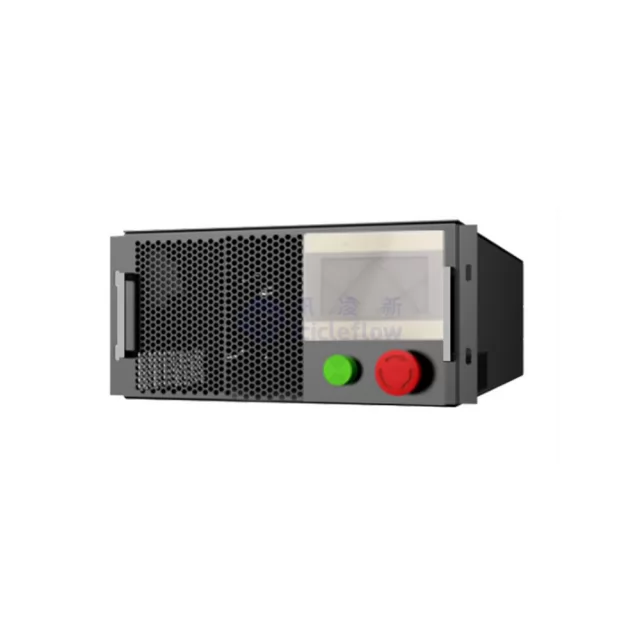

Rack Mounted Air And Liquid CDU FY016

1. Rated thermal exchange rate: 16.7KW

2. Rated water flow rate: 1.43m ³/h

3. Rated airflow rate: 4000m ³/h

4. Flow regulation range: 10-100%

5. Available head: primary side pressure drop ≤ 80kPa, secondary side ≥ 10m

6. Rated power: 1.17KW

7. Number of fans: 4

8. Available cooling media: deionized water/ethylene glycol solution/propylene glycol solution

9. Wind facing area of heat exchanger: 0.28 ㎡

10. Fin area of heat exchanger: 24.2 ㎡

11. Power specification: 220V AC/1PH/50Hz

Appearance specification: 10U
