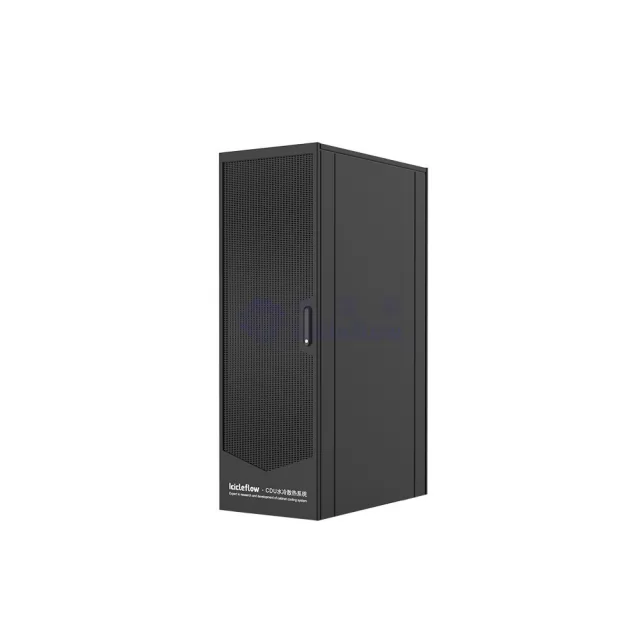

Cabinet Style Liquid CDU YY650

1. Rated thermal exchange rate: 650KW

2. Available lift: Secondary side lift ≥ 1.5bar

3. Rated power: ≥ 8.5KW

4. Temperature control accuracy: ± 0.5 ℃

5. Primary side cooling medium: pure water/ethylene glycol solution

6. Secondary cooling medium: Deionized water

7. Primary side inlet and outlet temperature: 37.5 ℃~47.5 ℃ inlet and outlet water

8. Secondary side inlet and outlet temperature: 40 ℃~50 ℃ 60m ³/h  inlet and outlet water

9. Fluid replenishment flow rate: ≥ 1L/min

10. Filter accuracy: 50 mesh on the primary side/300 mesh on the secondary side

11. Power specifications: 380V AC/3PH/50Hz,1+1 dual power supply, ATS switching
