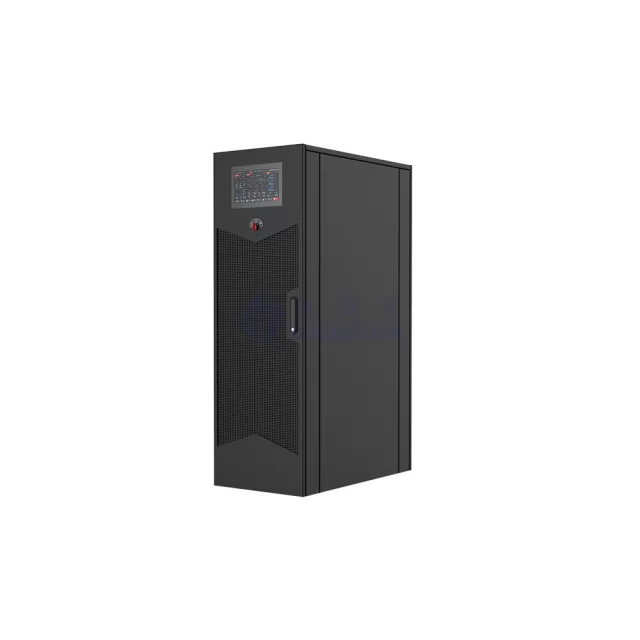

Cabinet Style Liquid CDU YY500

1.Rated thermal exchange rate: 500KW

2.Water flow regulation range: 10-100%

3.Available lift: Secondary side lift ≤ 3bar

4.Rated power: 8KW

5.Temperature control accuracy: ± 0.5 ℃

6.Primary side cooling medium: pure water/ethylene glycol solution

7.Secondary side cooling medium: Deionized water

8.Primary side inlet and outlet temperature: 35 ℃~41 ℃ inlet and outlet water

9.Secondary side inlet and outlet temperature: 40 ℃~46 ℃ 80m ³/h inlet and outlet water

10.Fluid replenishment flow rate: ≥ 1L/min

11.Filter accuracy: 50 mesh on the primary side/270 mesh on the secondary side

12.Power specifications: 380V AC/3PH/50Hz,1+1 dual power supply, ATS switching

13.Display specifications: 10 inch touch screen, displaying the operation process of the liquid cooling system
